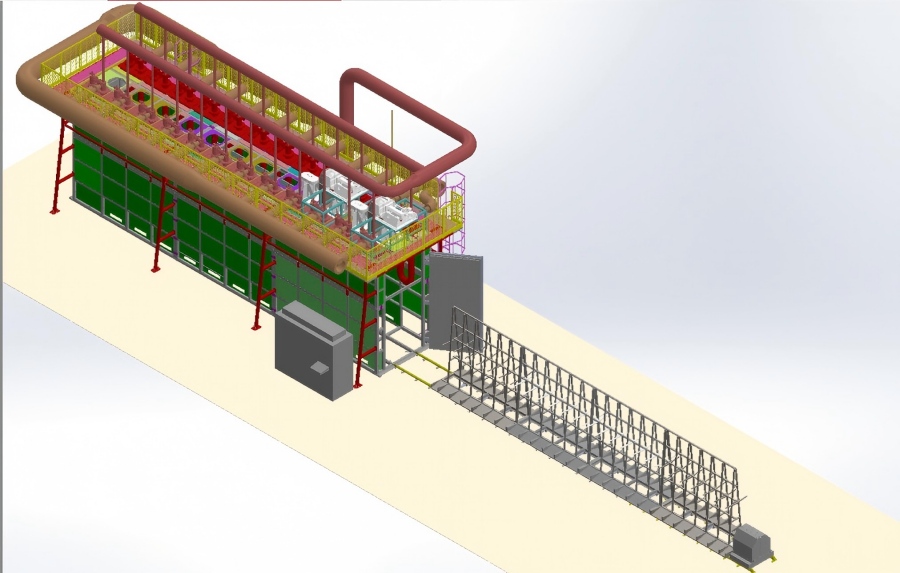

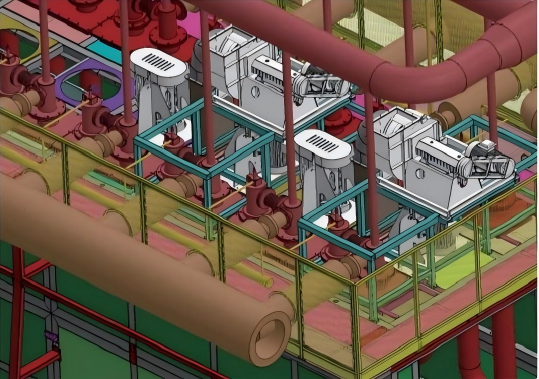

燃气式均质炉主要包括设备本体/燃控系统/电控系统。燃控系统采用烧嘴+辐射 管加热方式，结合连续比例+开关控制系统，使其满足工艺要求。

This Heat Soak Test Furnace with gas heating system includes the machine body, gas heating system and electric control system.Adopting burner (selfpreheating type) radiation heating mode and combining with pulse timing sequence control system to complete gas heating.Combine with continuous proportion and switch control system, make it meet the requirements of production.

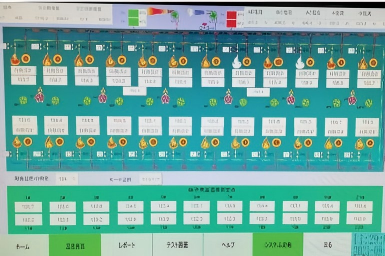

设备的控制和可视化被集成在工艺控制和可视化系统中。可视化系统将提 供必要的总体显示，成批显示和单独显示，带有历史跟踪和报警系统。

The control and visualization of the equipment is integrated into the process

control and visualization system.The visualization system will provide the necessary overall display、batch display and separate display,has history tracking and alarming system.

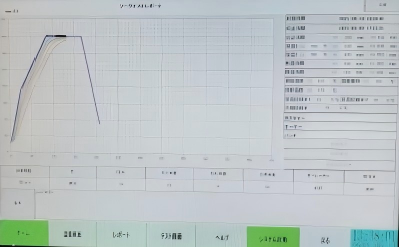

可通过画面可以调整工艺参数的设定值，而系统也有工艺参数的历史记录和实时跟踪。The set value of process parameters can be adjusted through the screen,the system saves historical records and real-time tracking of process parameters.

本钢化玻璃均质炉根据欧洲强化玻璃安全性能测试标准设计制造。加热器通断 采用固态继电器，工艺参数及程控使用电脑记忆存储及智能控制，温度调节模式 以PLC为主的电气控制系统自动完成。

The Heat Soak Test Furnace was designed and manufactured according to European safety performance test standard of toughened glass, energization and electricity stoppage of heater adopt solid state relay;technological parameter and program control use computer memory saving and intelligent control, temperature adjustment mode is automatically accomplished by PLC control system.

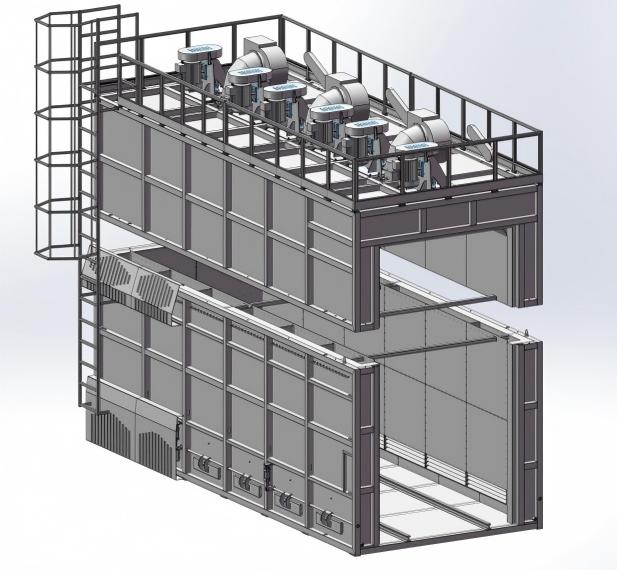

上下分体结构

Top and bottom split structure

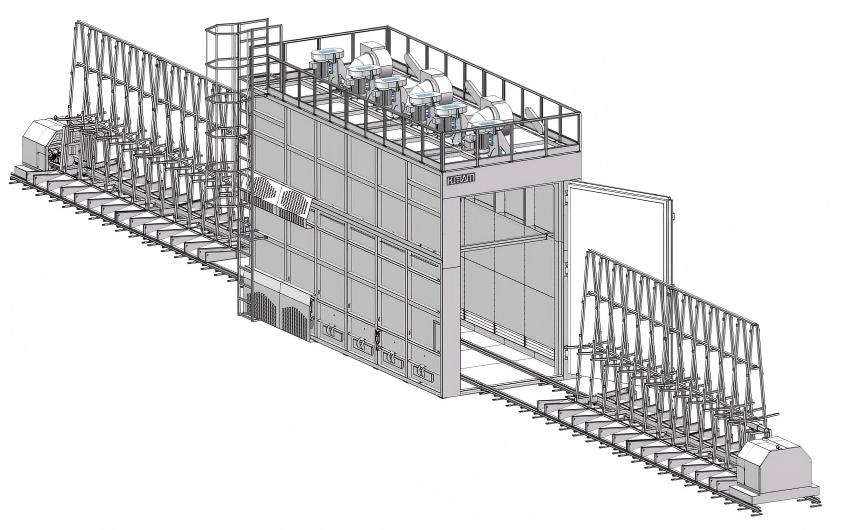

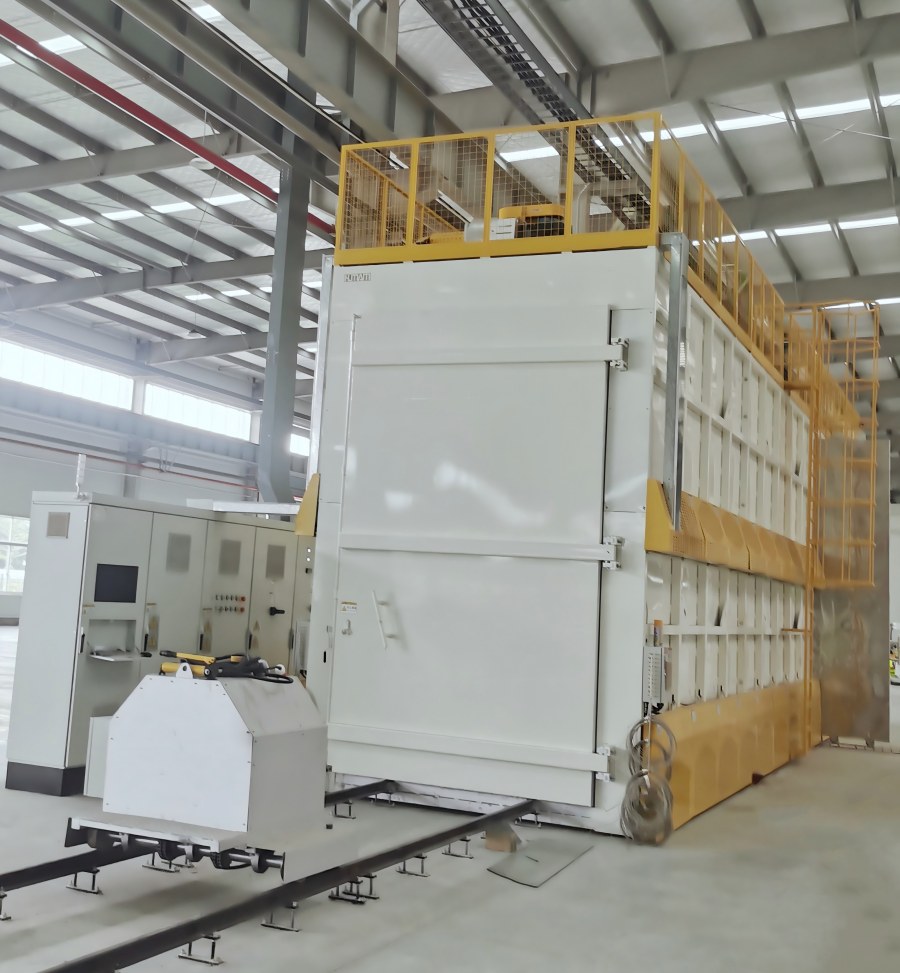

双开门 Heat soak test furnace with two wagons

温度曲线自动存储，利用循环风机使炉腔内温度快速、均匀的升温和降温，从而 减少钢化玻璃的自爆。电脑PID智能控制设备的自动加热及冷却，提供玻璃表面温度监视系统。

Automatic saving temperature curve,use convection blower make the temperature in the furnace fast heating and cooling,reduce the self explosion of tempered glass.The automatic heating and cooling are intelligently controlled by computer PID.Provide glass surface temperature monitoring system.

产品性能符合以下标准：

Furnace performance accord with below standard: EN14179-1:2005、EN14179-1:2016、

DIN   18510-4&CE.GB   15763.4-2009
